From THE BUILDER February 20 1959

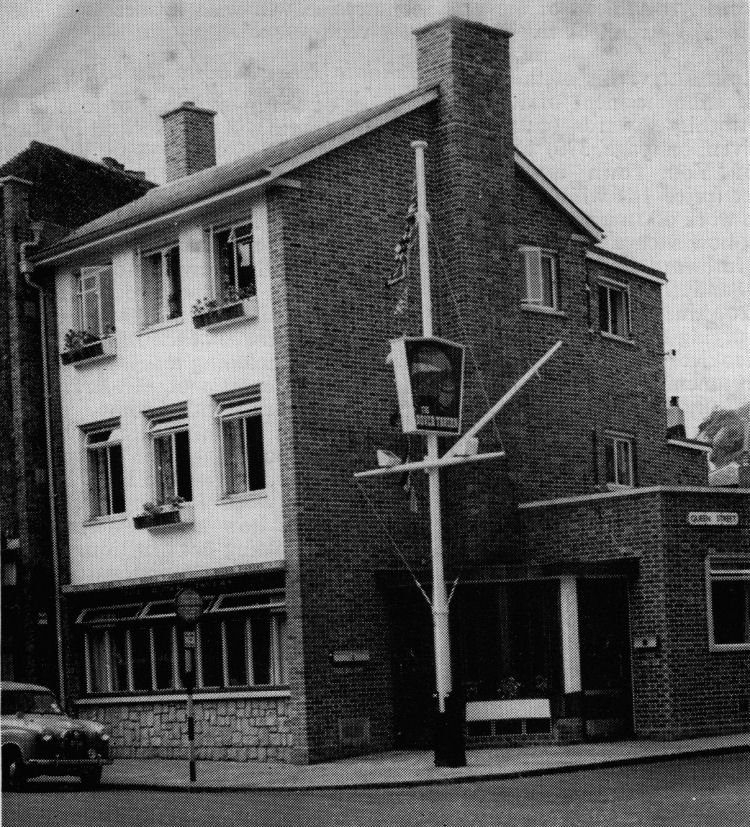

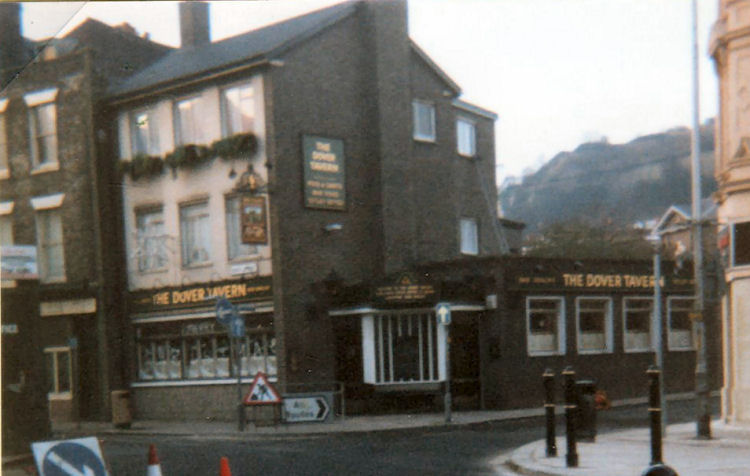

Above: A general view from the north. The entrances to both the bars are
situated under the porch. The sign post was made by yacht fitters to the
architect's design.

Dover Tavern sign left, October 1991, sign right, Jan 1991.
Above with thanks from Brian Curtis
www.innsignsociety.com
'THE DOVER TAVERN' Bench-street, Dover
for Ind Coope & Allsopp, Ltd.
Architects : RILEY & GLANFIELD
D. LLOYD, ARIBA, Assistant in Charge
Quantity Surveyors:
FLEETWOOD, EVERSDEN & Partners
General Contractor: R. J. BARWICK
THIS public house, which the brewers required to have a
nautical atmosphere, contains about 1,000 ft. super of drinking space,
snack bar facilities in the saloon, an unusually large amount of fixed
seating, a bottled beer store on the ground floor and a cooled cellar.

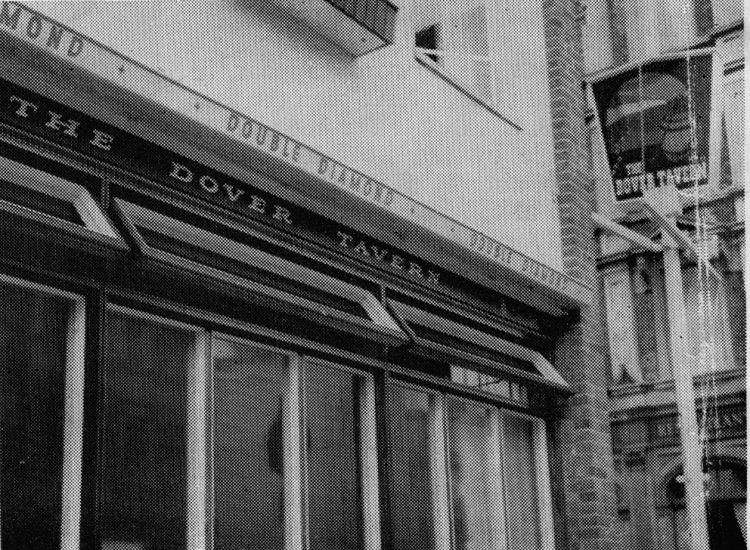

Above: Details of the saloon bar window and the sign which was painted
in permanent plastic materials by Peter Hands.
The site is subject to flooding and special foundations were also needed
to carry the new 9 in. boundary wall adjacent to the adjoining walls
which had brick foundations spreading 3 ft. on to the site. The
foundations for the new wall were 'Z' shaped to avoid adding to the
load on the brick foundations. Other construction was in load-bearing
brick with floors reinforced concrete suspended above the cellar and the
first floor is supported by steel columns bearing on the brickwork. One
4-in. steel column in the saloon bar supports the main beam which is
incorporated in the thickness of the ceiling.
The domestic character of the front elevation is due to the town
planning ruling that it must have three storey frontage harmonising with
existing buildings. The odd shape of the public bar was arrived at
because the local authority required the side road to be widened and the
bar is set out on a centre line to accommodate the road angle.
In the saloon bar the architect designed the fireplace with its free
standing circular flue, also all the counter fittings including the
combined advertising and lighting fitting above the bar. In the public
bar the dart board is surrounded by cork tiles to the architect's
design.

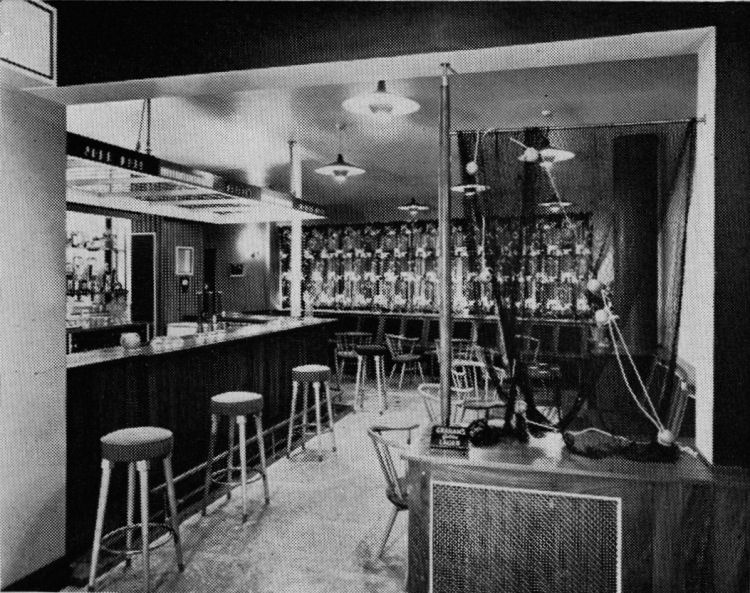

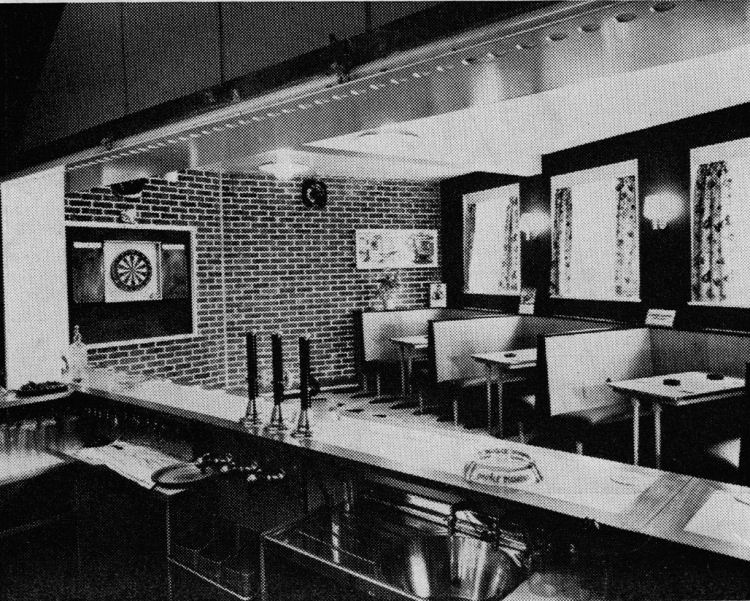

Above and below, shown two views of the bar area.
Sub-contractors and Suppliers:
Bricks, R. Passmore & Co., Ltd.;
structural engineers, R.C.L., Ltd.;
metal windows, W. James & Co., Ltd.;
felt roofing and asphalt, Val de
Travers, Ltd.;
electrical installations, J. W. H. Pemble;
cellar flaps, Haywards, Ltd.;
ironmongery, Parker, Winder & Achurch;
cellar sump
pump, Jobson & Beckwith, Ltd.;
heating and hot water, J. Wontner Smith,
Gray & Co., Ltd.;
slate front to saloon fireplace, Bow Slate & Enamel
Co., Ltd.;
applied lettering, Ward & Co.;
sanitary fittings, Alfred Olby,
Ltd.;
duct covers, Dover Engineering Works, Ltd.;
hand lift, Marryat &
Scott, Ltd.;
granolithic cellar paving, Johnson Floor Co., Ltd.;
sign
post, Buckleys (London), Ltd.;
joinery and bar fitting, R. J. Barwick;
linoleum, Inlaid Rubolin Flooring, Ltd.;
seating and beer pumps, Gaskell
& Chambers (London), Ltd.;
clocks, Baume & Co., Ltd.;
curtains and
carpets, Catesbys Contracts, Ltd.;
refrigerated cellar and shelves, J. &
E. Hall, Ltd.;
front elevation trough lighting and neon sign, Oldham
Sign Service, Ltd.;
fans, Woods of Colchester, Ltd.;
lighting fittings, Troughton & Young; Falk's; Heffer;
boat model in snack bar, J.
Prangnell
Above: The saloon bar with the free-standing circular flue to the
fire place on the right.

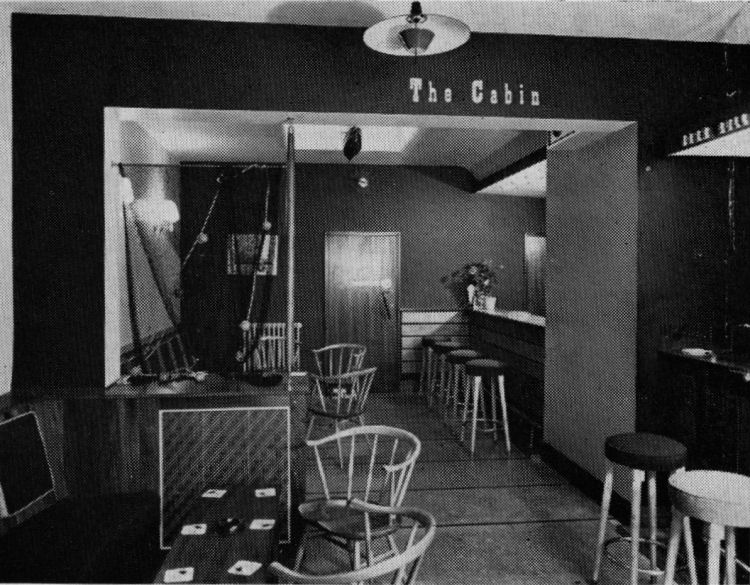

Above: The snack bar attached to the saloon bar. A boat model
hangs under the roof-light.

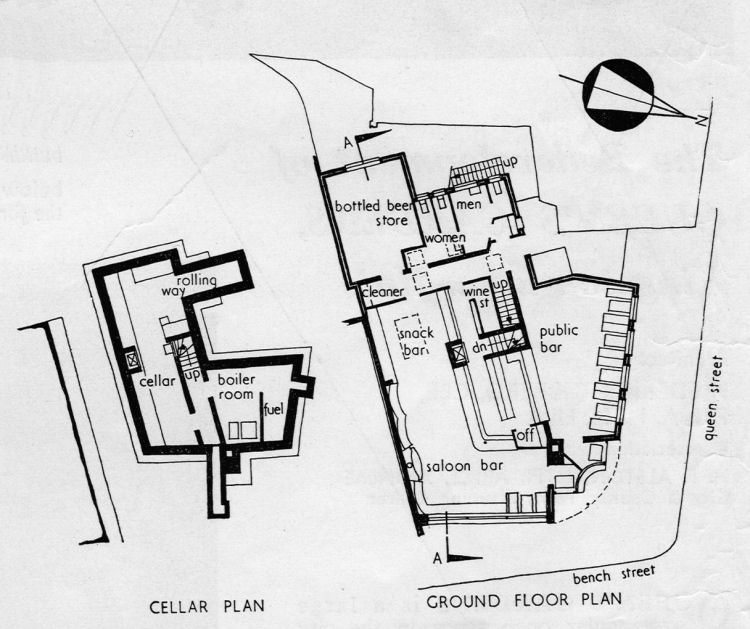

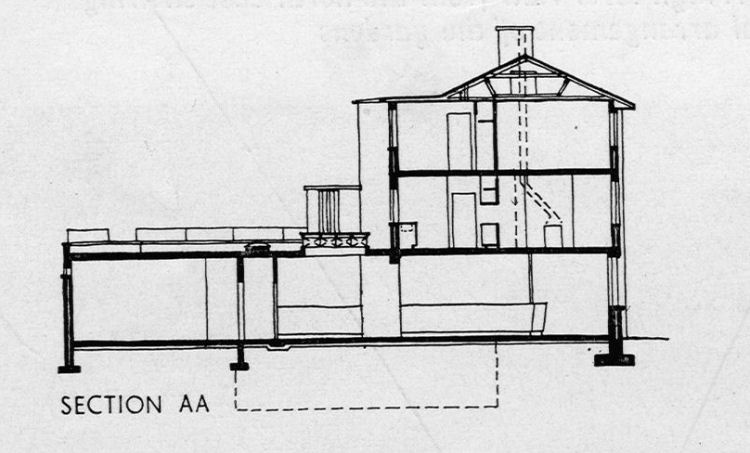

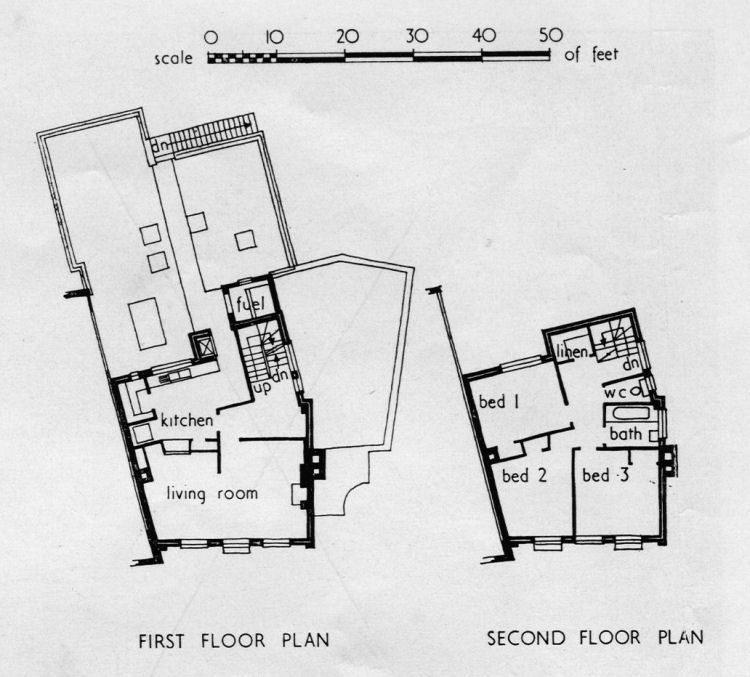

Floor Plans of the Dover Tavern.
|
